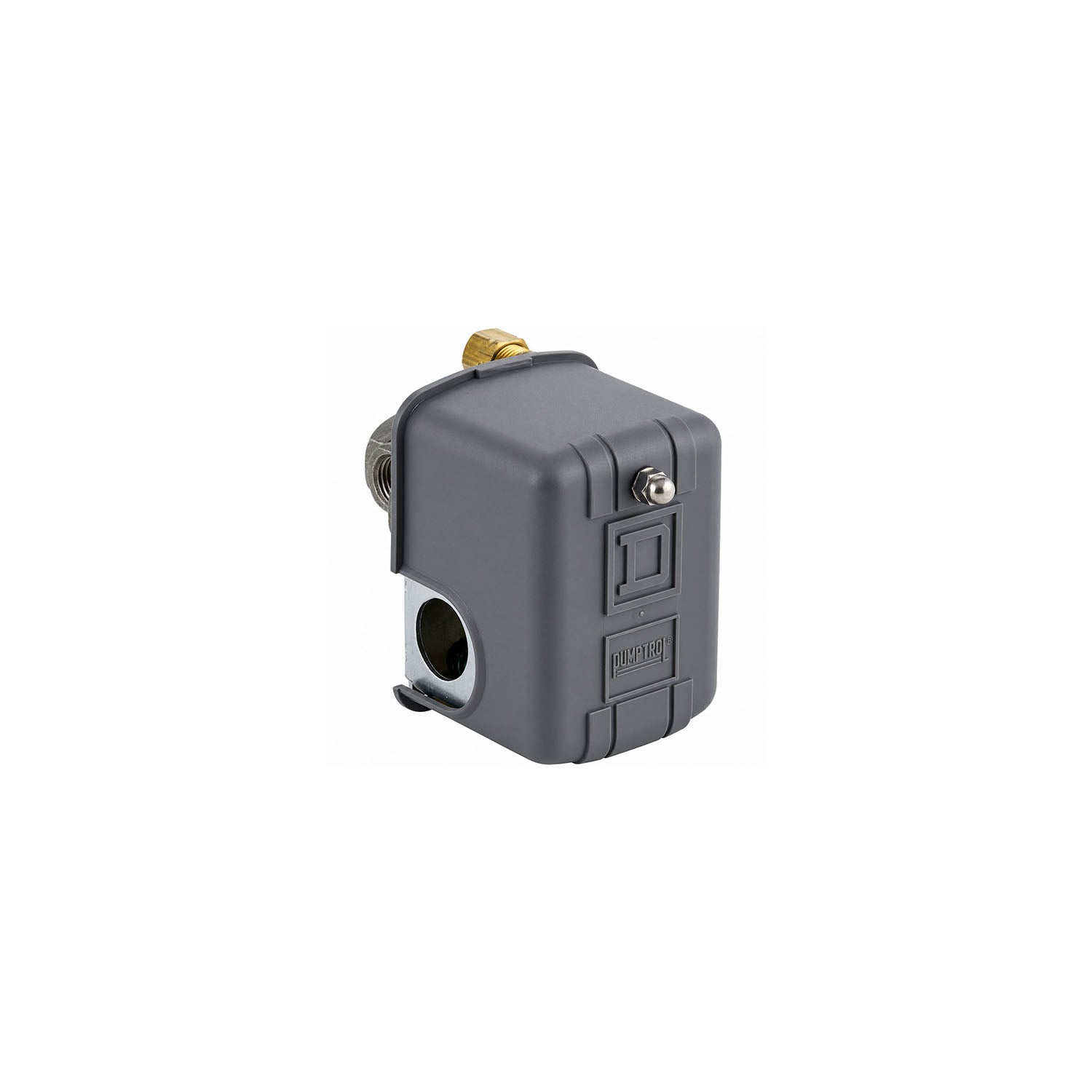

Square D 9013FHG52J59X Air Compressor Pressure Switch 175 psi

Optimize your air compressor with the Square D Pumptrol 9013FHG52J59X pressure switch. Engineered for electrically driven motors of 2 hp or greater, this switch is factory-set to turn off at 175 psi with a 40 psi fixed differential. It features a 1/4-inch NPSF internal connection and an integrated 2-way pressure release valve. The NEMA 1 rated enclosure and UL listing ensure safety for power circuit applications. Reliable and durable, it is the industry standard for power systems.

• It features a fixed differential of 40 psi and a 100 to 200 psi cut out range.

• An integrated 2 way pressure release valve is included for system safety.

• This model is suitable for high horsepower motors of 2 hp or greater.

• The diaphragm actuated design provides reliable and accurate performance.

• A 1/4 inch NPSF internal fluid connection allows for standard installation.

• Two pole normally closed contacts open automatically on rising pressure.

• The NEMA Type 1 enclosure is UL Listed and CSA certified for safety.

• Authentic Telemecanique part 9013FHG52J59X is made by Schneider Electric.

• This Square D Pumptrol switch controls electrically driven air compressors.

• The pressure switch is factory set to turn off at a threshold of 175 psi.
