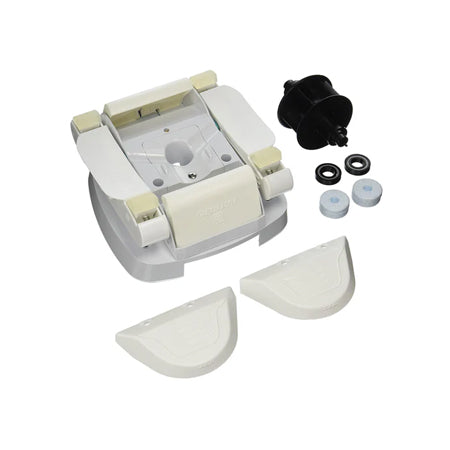

Hayward Propulsion and Wing Rebuild Replacement Kit

Check the condition of the “shoes, wings and flaps” periodically. The shoes and wings have wear indicators on their sides and should be checked occasionally to determine if they need to be replaced. The shoe wear indicator is the line on the side of the shoe that appears as a difference in texture. If the texture difference is no longer visible at the bottom of the shoe when viewed from either side, the shoes must be changed (See Figure 8). Also on the side, the wing wear indicator is the horizontal line which has three (3) vertical lines above it. If you can no longer see the horizontal line, the wings must be changed (See Figure 9). The Hayward shoe and wing maintenance kit is available from your Hayward dealer. Shoes, wings and flaps may also be purchased separately.
